Due to the numerous stages and streams involved, waste can be a complex sector to operate within.

Whether you are dealing with typical black bag Municipal Solid Waste (MSW) or have an Anaerobic Digestion (AD) facility converting food waste into biogas, most waste handling facilities have the potential to suffer from all or some of the following issues:

  • Odour (relevant for putrescible waste)
  • Dust (waste separation, sorting, recycling, and biomass facilities)
  • Heat (issue for Energy from Waste projects, but also MCC rooms anywhere)
  • Vehicle emissions (vehicles within fuel/waste handling and reception buildings)
  • Humidity (food waste and composting)

Our Solutions:

Ventilation
HVAC
Local Exhaust Ventilation
Extract Systems
Odour Control Solutions
Typical Facility Locations & ATS’ Solution

Ventilation

ATS use a combination of traditional and innovative ventilation techniques to provide solutions that will maximise the Ventilation efficiency in any situation.

  • Eliminate areas of low ventilation – hotspots.
  • Aid the effective capture of odours.
  • Assist in the prevention of fugitive emissions.
  • Effectively achieve the desired air change rates
  • We can reduce the number of air changes required by using our JETFLO nozzle system that can be up to 10 times more effective than a traditional extraction system.
  • Tackle excess heat issues with a range of solutions.

HVAC

At ATS, we tend to use this term when we are also looking to adjust the temperature of the air being supplied to control the environment. We would still use all the points listed in the ventilation section above, but in addition we can use:

  • Air Handling Units
  • Air conditioning
  • Heat exchangers

Local Exhaust Ventilation

Commonly known as LEV, this aspect of extraction design has its own set of standards associated with it. Our Designers and many of our Project Managers/Engineers possess the appropriate qualifications for this. It involves the capture and removal of contaminants at source.

  • Dust (& fume) extraction
  • Bag filters/ cartridge filters / cyclone separators

Extract Systems

Often perceived as the primary way that an air change rate/the capture of odours in achieved. We design and install extract solutions in several regulated sectors including the water and nuclear industries.

Extraction on its own is a very poor way of achieving effective ventilation. We often use mechanical supply systems (such as our JETFLO system) to compliment the extraction – particularly relevant to large buildings.

Odour Control Solutions

Our comprehensive range of Odour Control solutions are based on the proven technologies that have demonstrated their effectiveness over many decades. We can advise the most suitable technique, or combination of techniques required to tackle your odour issues, whether that is for a constant odour issue, or just required during maintenance and breakdowns. Our systems include:

  • Carbon Filters
  • Biofilters
  • Biotrickling Filters
  • Chemical Scrubbers

Typical Facility Locations & ATS’ Solution

Facility Location ATS Solution
Fuel / Waste reception

Difference waste streams (typically RDF or Biomass) are delivered into this area and can create dust and/or odour issues.

  • Misting Systems for dust suppression
  • Extraction systems to transfer air to either the process and / or Odour Control.
  • JETFLO nozzle supply system – to compliment & improve odour capture and/or Ventilation efficiency.
  • LEV systems to target the sources of dust/odour generation.
  • Odour Control if applicable
Boiler / Gasifier / Process building

The boilers/gasifiers, etc, together with the associated pipework can radiate vast amounts of heat. This needs to be addressed to maintain a workable environment and to prevent equipment tripping out.

  • Various Ventilation techniques associated with heat removal
MCC rooms

The location of the control panels associated with much of the equipment on site.

HVAC techniques to address heat losses from control panels and VSD’s.
MRF (Material Recycling Facility) / Recycling

There is typically a significant amount of ‘materials’ handling and sorting involved in this process – generating dust.

  • Dust suppression using misting systems.
  • LEV systems to extract dust from the source and dust generation points.
Biomass

Any plant-based product with a high calorific value. This can generate high levels of dust whilst being processed.

  • Dust suppression using misting systems.
  • LEV systems to extract dust from the source and dust generation points.
WTS (Waste Transfer Stations)

Very similar to waste reception buildings, with the same challenges.

  • Misting Systems for dust suppression
  • Extraction systems to transfer air to either the process and/or Odour Control.
  • JETFLO nozzle supply system – to compliment & improve odour capture and/or Ventilation efficiency.
  • LEV systems to target the sources of dust/odour generation.
  • Odour Control
Food Waste – Anaerobic Digestion

This is often an odorous process and will require an effective method of odour capture and treatment.

  • Effective Ventilation of the building and extraction of air to be treated by a suitable Odour Control solution.
Green Waste – In-vessel composting

The process generates odours which needs to be captured and treated effectively.

  • Effective Ventilation of the building and extraction of air to be treated by a suitable Odour Control solution.
All waste facilities
  • Survey and review of existing Ventilation / HVAC / Odour Control / LEV systems.
  • Testing of systems to establish effectiveness.
  • Servicing & Maintenance of systems
  • Modifications
  • Replacement
  • ‘Troubleshooting’
Industrial ventilation solution installation
Plastic exhaust ventilation with odour control using a chemical scrubber and biofilter to treat malodorous contaminated air

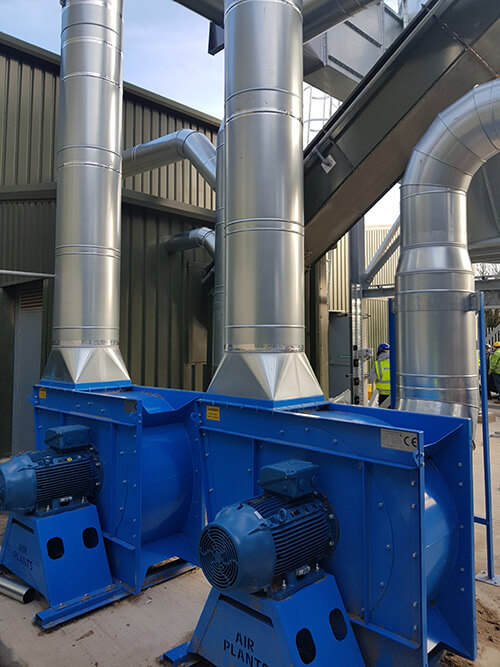

Centrifugal fan with plastic/GRP extract ventilation ductwork
Motor control centre (MCC room) process cooling
Industrial wastewater pumps with GRP ventilation ductwork
Galvanised steel ventilation fans
